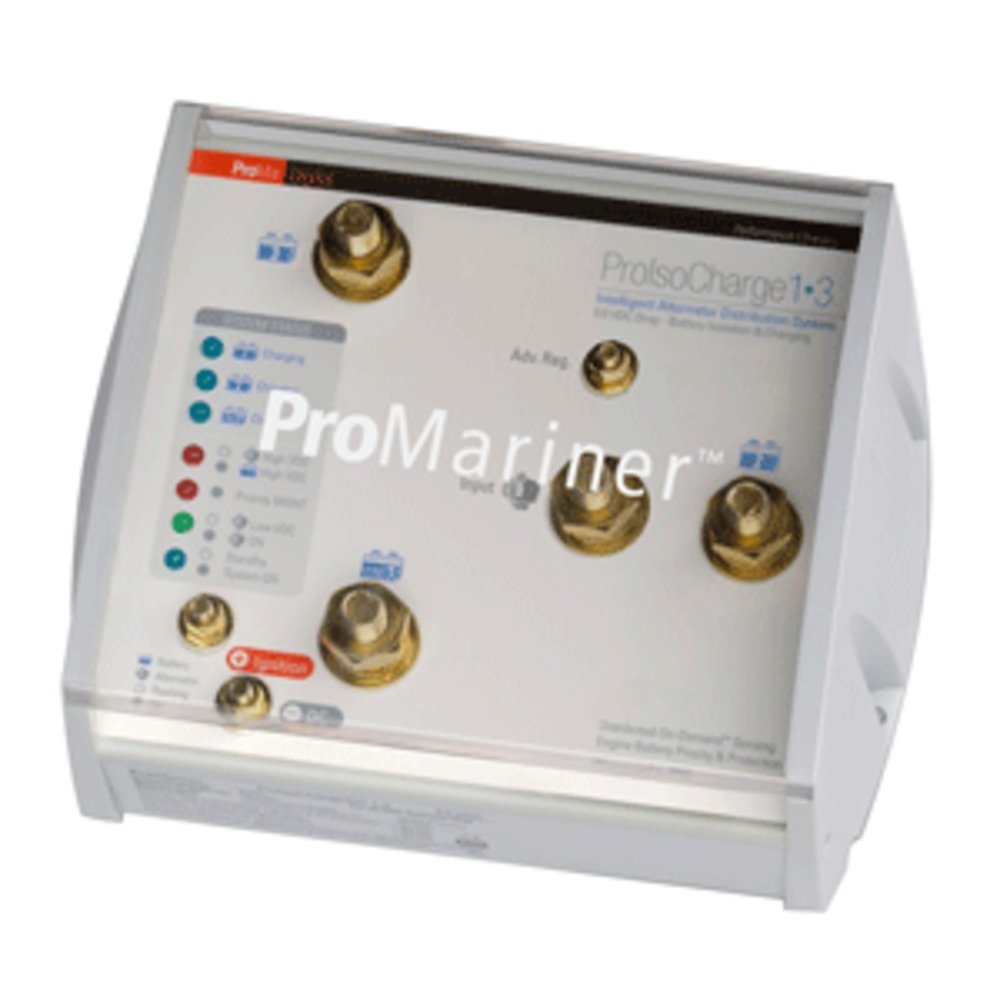

ProMariner ProIsoCharge Battery Isolator 180Amp 1-Alt 3-Bat - 12V

ProIsoCharge Series

Model ProIsoCharge180 1•3
Part No. 23125
System Volts DC 12
Max DC Amps 180 Amp
Alternator Input1
Battery Outputs 3
Size 7.55(l) x 5.875(w) x 3.125(h)
Weight5 lbs

Significantly Smarter...
ProIsoCharge delivers digitally controlled alternator output distribution while protecting the health of engine start batteries. An industry changing design that provides intelligent and zero voltage loss isolation, charging of up to 3 other battery banks off a single alternator (model specific). For dual engine applications, ProIsoCharge offers an exclusive 2 alternator input model with up to 4 battery banks. Smart enough to provide priority charging to a battery bank thats under load by taking fully charged batteries off line. The all-in-one design eliminates the need for multiple voltage sensitive relays to charge multiple battery banks simultaneously, saving space, installation time and cost. Ensuring fully charged batteries and faster charge times, ProIsocharge eliminates the typical alternator voltage loss of 0.6VDC thats commonly associated with traditional diode based isolators. Installed with the ProNauticP Series, a boat owner can enjoy the full benefit of shore power and on the water charging. Designed to provide more time on the water enjoying what you like most... boating.

Intelligent Alternator Power Distribution System

ProMar Digital Performance Zero Volt Loss Isolation and Charging
All digital design delivers active battery status and automatic engine battery healthpriority while digitally distributing the full output of your engines alternators.

Intelligent Isolation and Charging Software Control
ProIsoCharges intelligent software control provides priority charging to a battery bank thatis under load (i.e house bank or power inverter bank) by taking fully charged batteries off lineand priority charging discharged battery banks, while insuring the health of the engine batteries.

Real Time LED Status Indicators
Highly visible LEDs to indicate alternator power is present and battery bank charging status.Fault LEDs include: high and low alternator output, over-voltage protection and high voltageconditions that may be present on any one of the battery banks connected (that are alsoconnected to other charging sources gen set combi etc).

Ignition Controlled
Distributed On Demand™ battery bank management will only activatewith ignition power on.

Advance Regulator Ready
Advance regulator remote sense connection provided for precision alternatoralgorithm control for alternators equipped with an advanced regulator.

Easy Installation
Modular design for easy install. Includes all terminal stud insulator bootsand protective snap on safety cover.

Built-in Safety
Ignition protected and waterproof to IP66. FIVE YEAR
