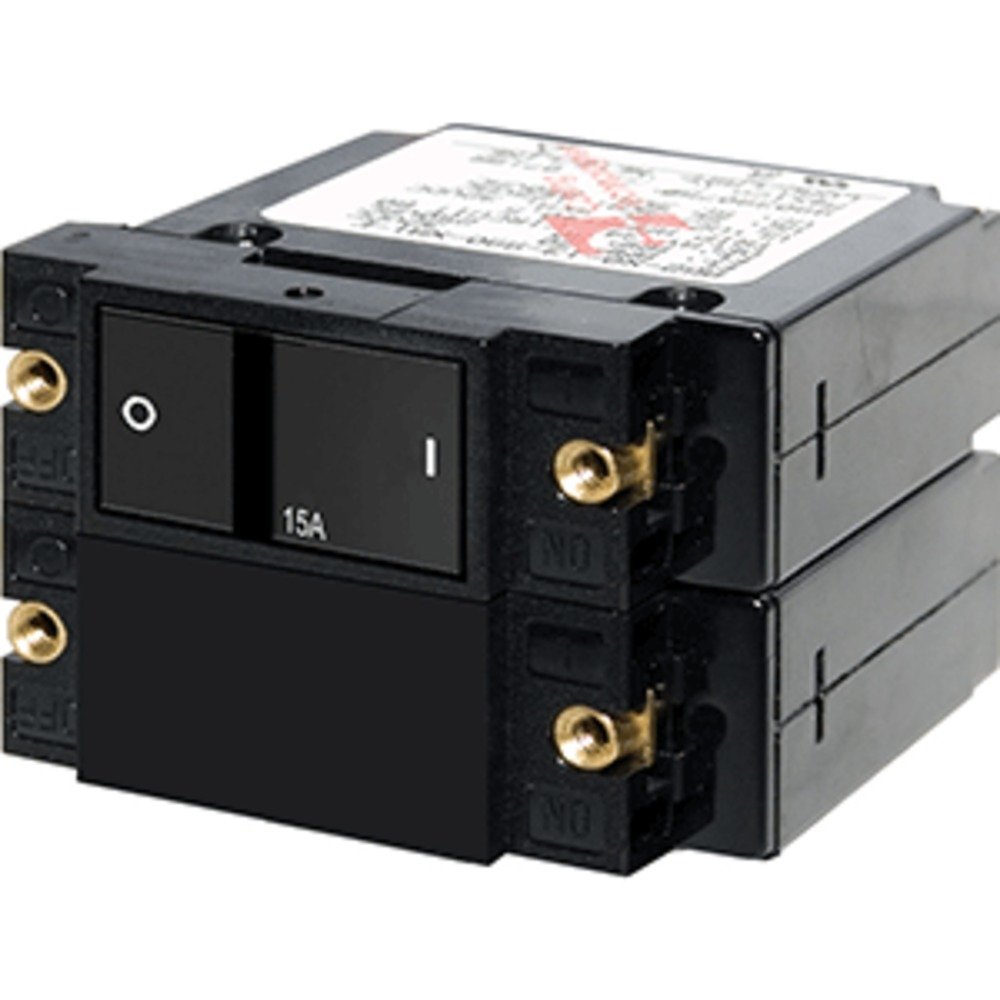

Blue Sea 7411 A-Series Flat Rocker Circuit Breaker - Double Pole - 15A
$32.89
CWR-65270
Add
A-Series Flat Rocker Circuit Breaker - Double Pole - 15A

Features:
  • Color actuator indicates OFF position
  • Trip Free design cannot be held ON during fault current condition
  • International ON/OFF symbols support vertical or horizontal mounting


Specifications:
  • Amperage: 15A AC / 15A DC
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Maximum Voltage: 120V AC / 240V AC / 32V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Screw Terminal Torque: 14 in-lb (1.58 Nm)
  • Switching Cycles: 10000
  • Terminal Screw: #10-32 Stainless Steel
  • Weight: 0.38lb (0.17 kg)
