Blue Sea 5051 ST CLB Circuit Breaker Block - 12 Position

Home > Blue Sea 5051 ST CLB Circuit Breaker Block - 12 Position

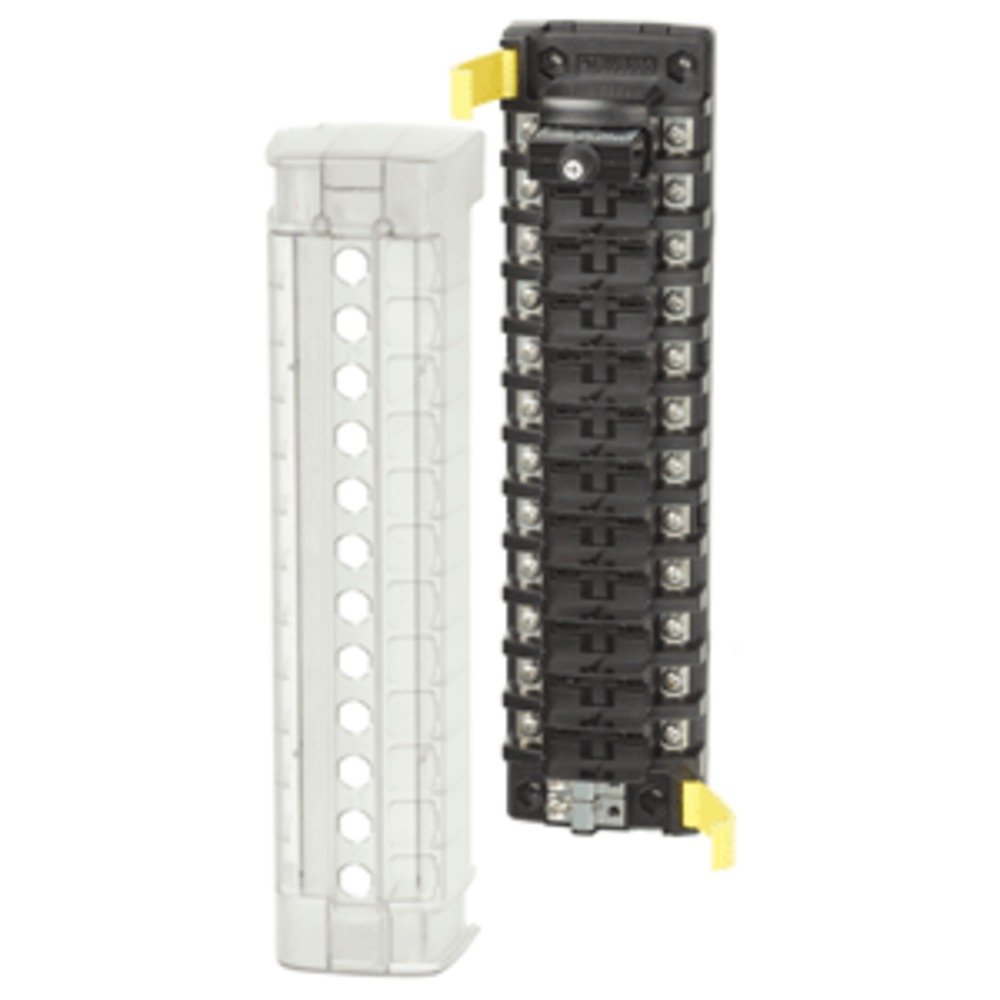

Blue Sea 5051 ST CLB Circuit Breaker Block - 12 Position
$63.52
CWR-51810
Add
ST CLB Circuit Breaker Block - 12 Position

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits:12
Maximum Amperage:32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage:32V DC
Mounting:#8 Screw (M4) or #8 Nut
Source:Independent SourceMinimum Operating Temperature:-10° C
Maximum Operating Temperature:60° C
Mounting Centers:10.13(257.3 mm)
Screw Terminal Type:#8-32 Screws with Captive Star Lock Washer
Height:6.69(169.93 mm)
Weight:1.50lb (0.68 kg)
