Blue Sea 2303, 150 Ampere Common BusBar 4 x 1/4 Stud Terminal

Home > Blue Sea 2303, 150 Ampere Common BusBar 4 x 1/4 Stud Terminal

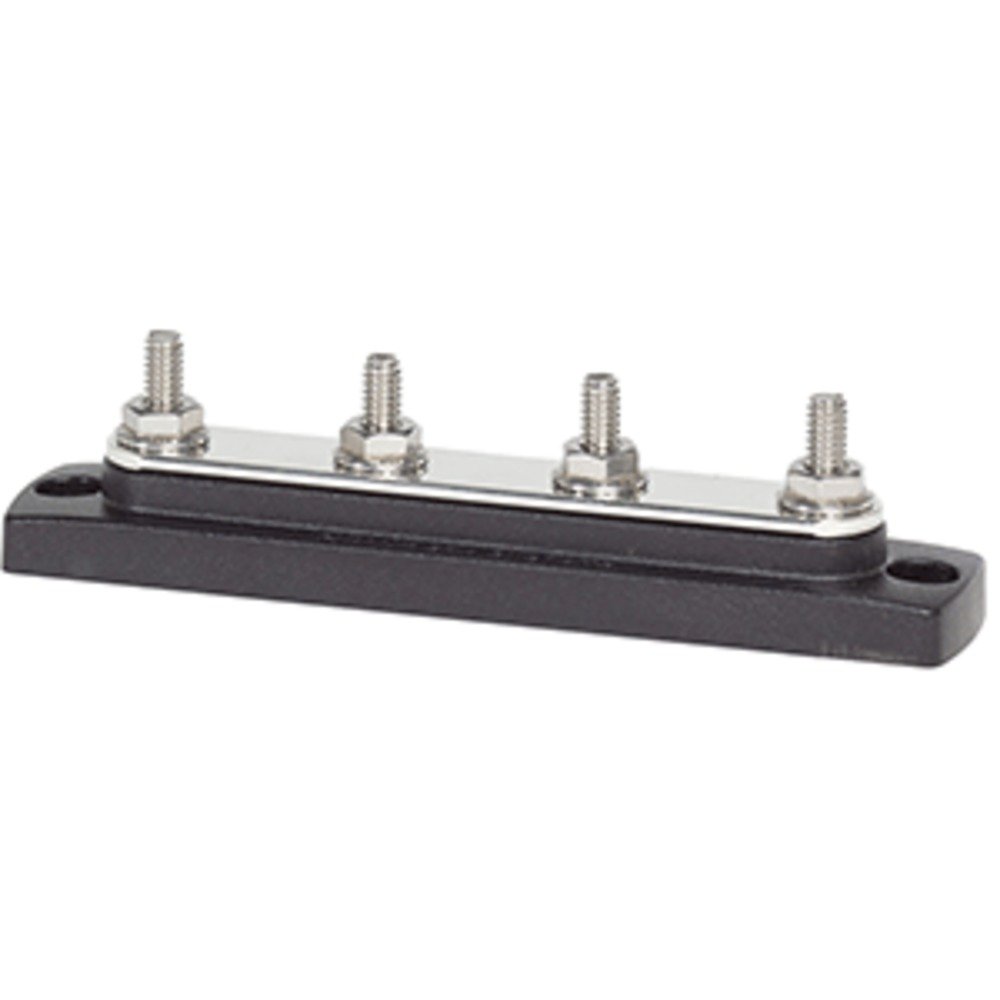

Blue Sea 2303, 150 Ampere Common BusBar 4 x 1/4 Stud Terminal
$16.63
CWR-13945
Add
150 Ampere Common BusBars 4 x 1/4" Stud Terminal

PN:   2303

  • Stud design provides direct terminal to bus contact for low resistant connection
  • Stainless steel studs allow high torquing for excellent electrical contact
  • Tin-plated copper bus for maximum conductivity and resistance to corrosion
  • UV 94-VO rated (self extinguishing) base material resists high heat
  • Press on insulating cover attaches to studs and allows unobstructed wire access


Continuous Amperage130 Amperes AC
150 Amperes DC
Maximum Voltage Rating300 Volts AC
48 Volts DC
Bus MaterialTin-Plated Copper CDA 110/UNS11000
Base MaterialGlass Reinforced Polycarbonate
StudsStainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal
Weight0.34Lb
